Panels and rails, done to the roof
Rail and clamp system rated for tin or tile, panels laid to the design, cable in conduit, DC isolators where the standard puts them.
Solar installation · Brisbane east
Solar installation, Brisbane.
Sized to your roof.
Panels laid out for the faces your roof actually has, an inverter that is ready for a battery, the Energex connection lodged so you can export properly, and the rebate taken off the quote. Designed and installed by our own licensed electricians.
10 kW
Export per phase on an Energex dynamic connection
1 day
Typical install, on the roof and switched on
12-month
Workmanship guarantee
5.0
5-star Google reviews
Which way does your roof face?
Plan it on your roof
Add panels to the faces you have. The plan fills in, the numbers follow. Indicative for Brisbane with 440 W panels, before shading. We confirm from satellite imagery and on the roof.
Panels per roof face
North 100 %
The classic. Most sun over the year.
8East 87 %
Morning power. Good if the house is busy before work.
0West 87 %
Afternoon power, when the aircon is on and the tariff is highest. Worth more than the numbers suggest.
4South 72 %
Last resort. Works on a low-pitch roof, loses a lot on a steep one.
0
Twelve panels split east and west beat twelve on the south. And a 6.6 kW array on a 5 kW inverter is good design: the panels rarely hit their peak, and the inverter limit only bites for an hour around noon.
Your system
5.3 kW
12 panels · about 25 m² of roof
- Average day
- 21 kWh
- Winter day
- 15 kWh
- Summer day
- 25 kWh
Inverter and Energex
5 kW hybrid-ready inverter. Basic single-phase connection, 5 kW export. A dynamic connection lifts that to 10 kW.
The flyer deal
What the cheap package leaves out
The same size system can be quoted two ways. This is what usually separates them.
The flyer dealWhat we fit
Panels
Flyer deal ·Whatever is cheapest that month, 12 to 15-year product warranty
We fit ·A tier-one panel with a 25-year product warranty and a local office to claim on
Inverter
Flyer deal ·A basic 5 kW string inverter with no battery input
We fit ·Sized to the array and hybrid-ready, so a battery later is a half-day job
Mounting
Flyer deal ·Generic rails, screws through the tin, tiles left cracked
We fit ·Rail and clamp system rated for the roof, flashed penetrations, cracked tiles replaced
DC wiring
Flyer deal ·Cable run loose under the panels, isolator on the roof
We fit ·Cable in conduit, isolators where the standard puts them, labelled
Who turns up
Flyer deal ·A subcontracted crew the salesperson has never met
We fit ·Our own licensed electricians, on the roof and at the board
Energex
Flyer deal ·Basic connection, 5 kW export, or zero export if the street is full
We fit ·Dynamic connection application, up to 10 kW export per phase
After the install
Flyer deal ·A brochure and a 1300 number
We fit ·The app on your phone, the certificate, and us on the end of a mobile
Rebate
Flyer deal ·Applied, usually
We fit ·STCs on the quote as a line, so you can see what you got
Cheap solar is usually legitimate. It is just a different set of parts and a different crew, and the price reflects it. Ask any quote for the panel model, the inverter model, and who is on the roof.
What the install includes
Solar installation in Brisbane: roof, wall, board, paperwork

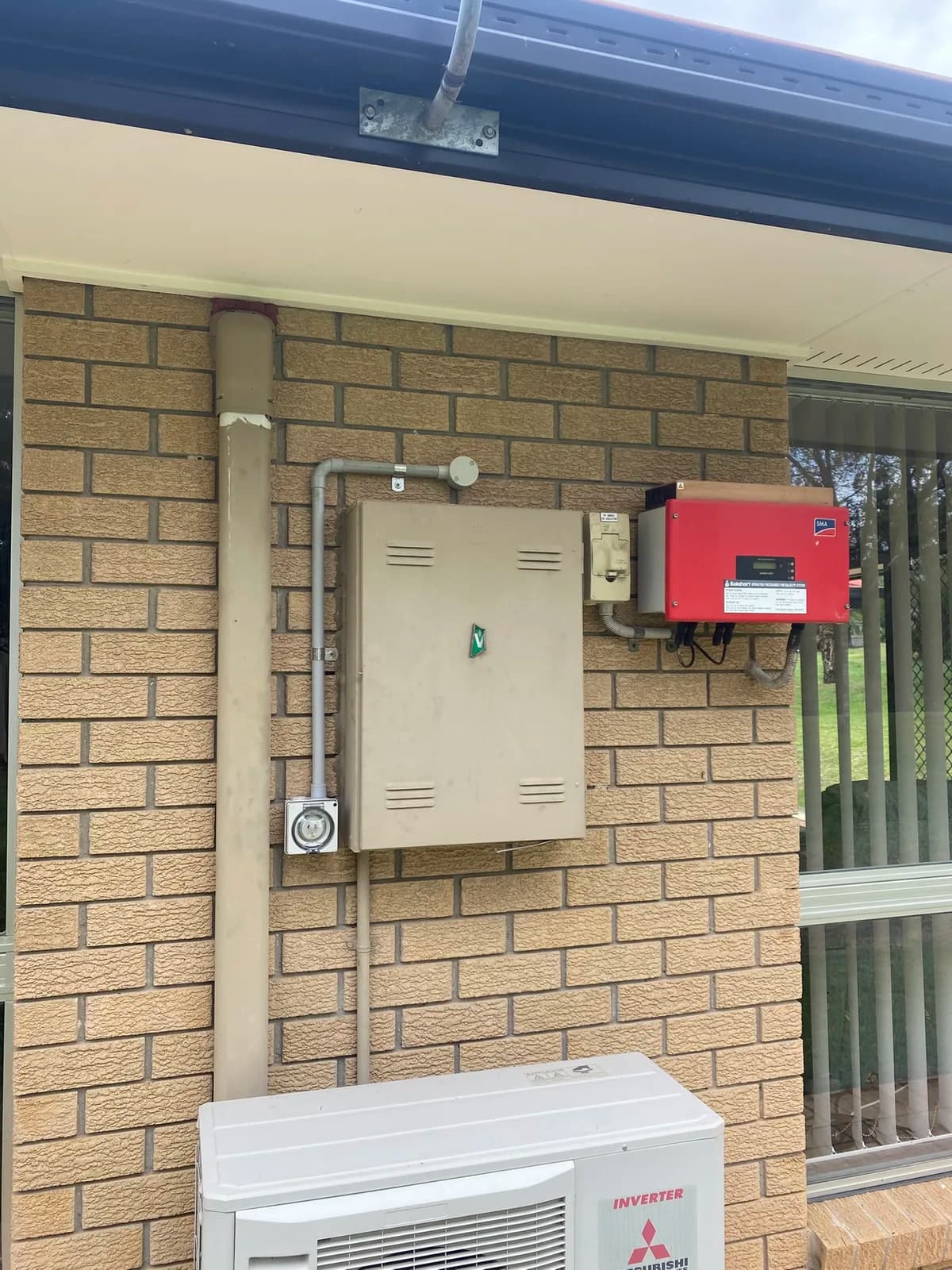

Inverter, isolators, meter

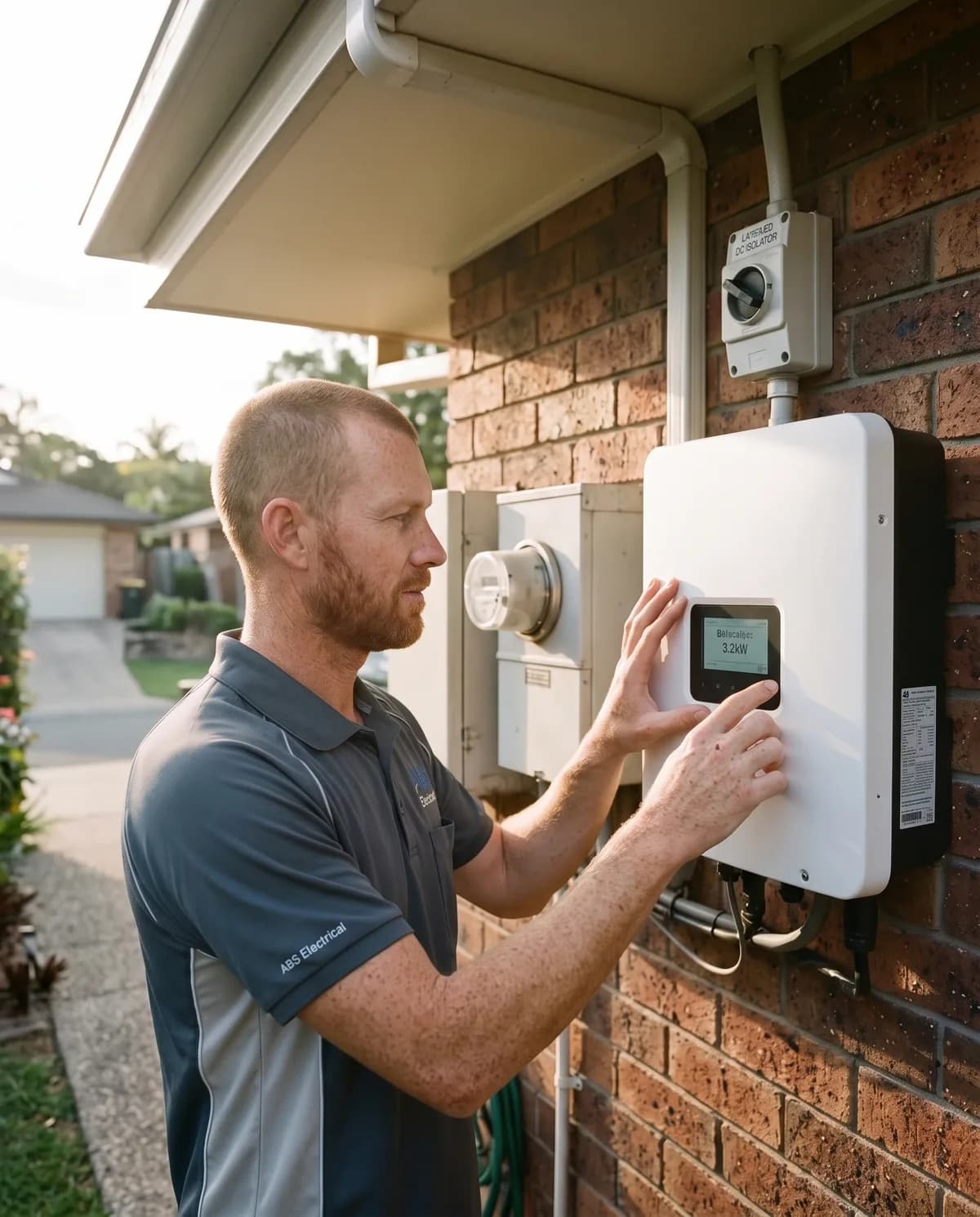

A hybrid-ready inverter on a shaded wall, AC and DC isolators labelled, the metering sorted with Energex, and the board checked for the new circuit.
Connection, STCs, the app
The Energex dynamic connection application before we start, the STC rebate handled on our side, monitoring on your phone before we leave.
How it runs
Bill and address to switched on
Step 01
Your bill and your address
Twelve months of usage and a look at the roof on satellite. Enough to draw the panel layout and size the inverter.
Step 02
Design and fixed price
Panel count by roof face, inverter, any board or meter work, with the STC rebate as a line on the quote.
Step 03
Energex application
Lodged before we book. A dynamic connection where the inverter supports it, so exports are not capped at 5 kW.
Step 04
Install day

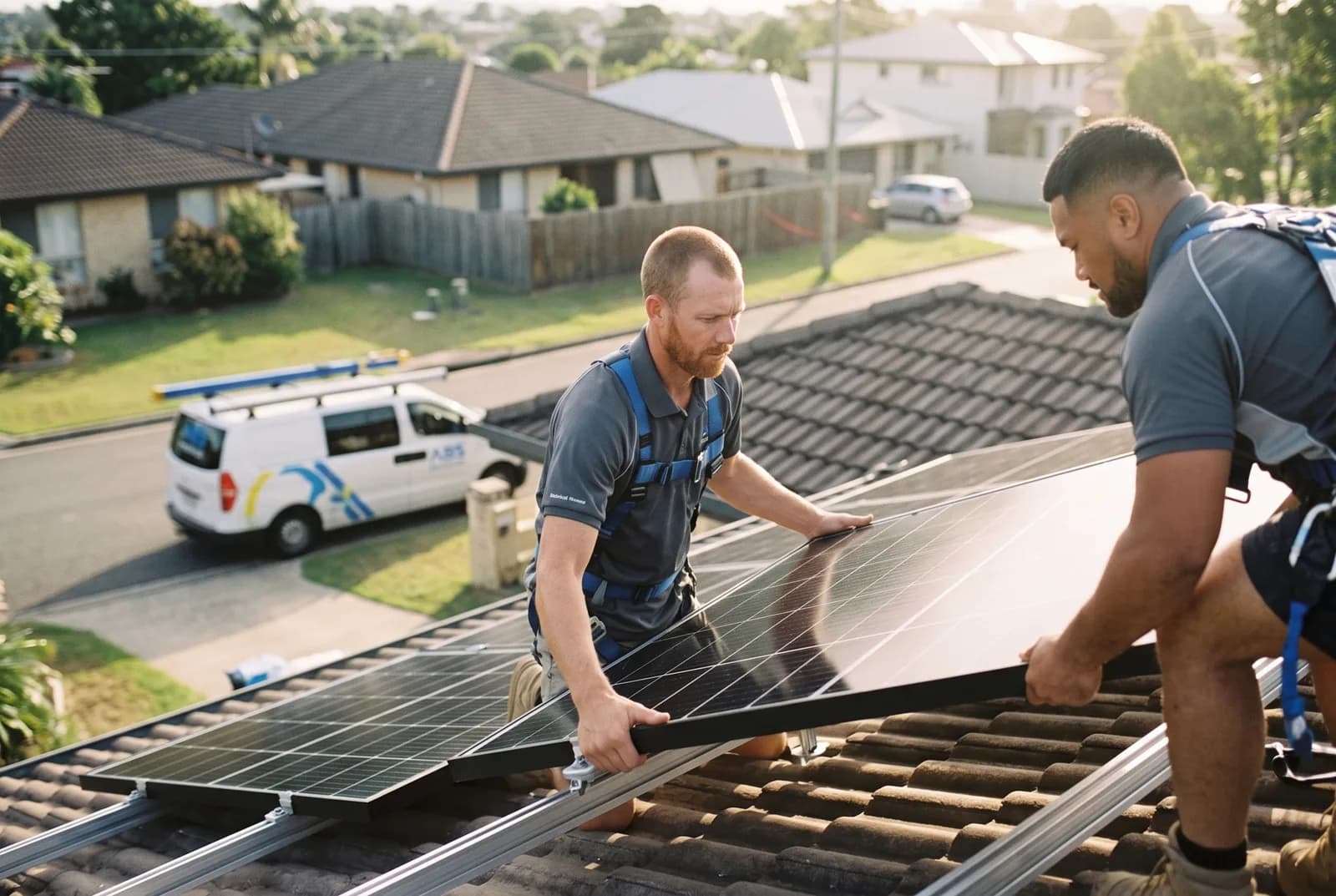

Rails and panels in the morning, inverter and isolators after lunch, power off for an hour at the board. One day for most homes.
Step 05

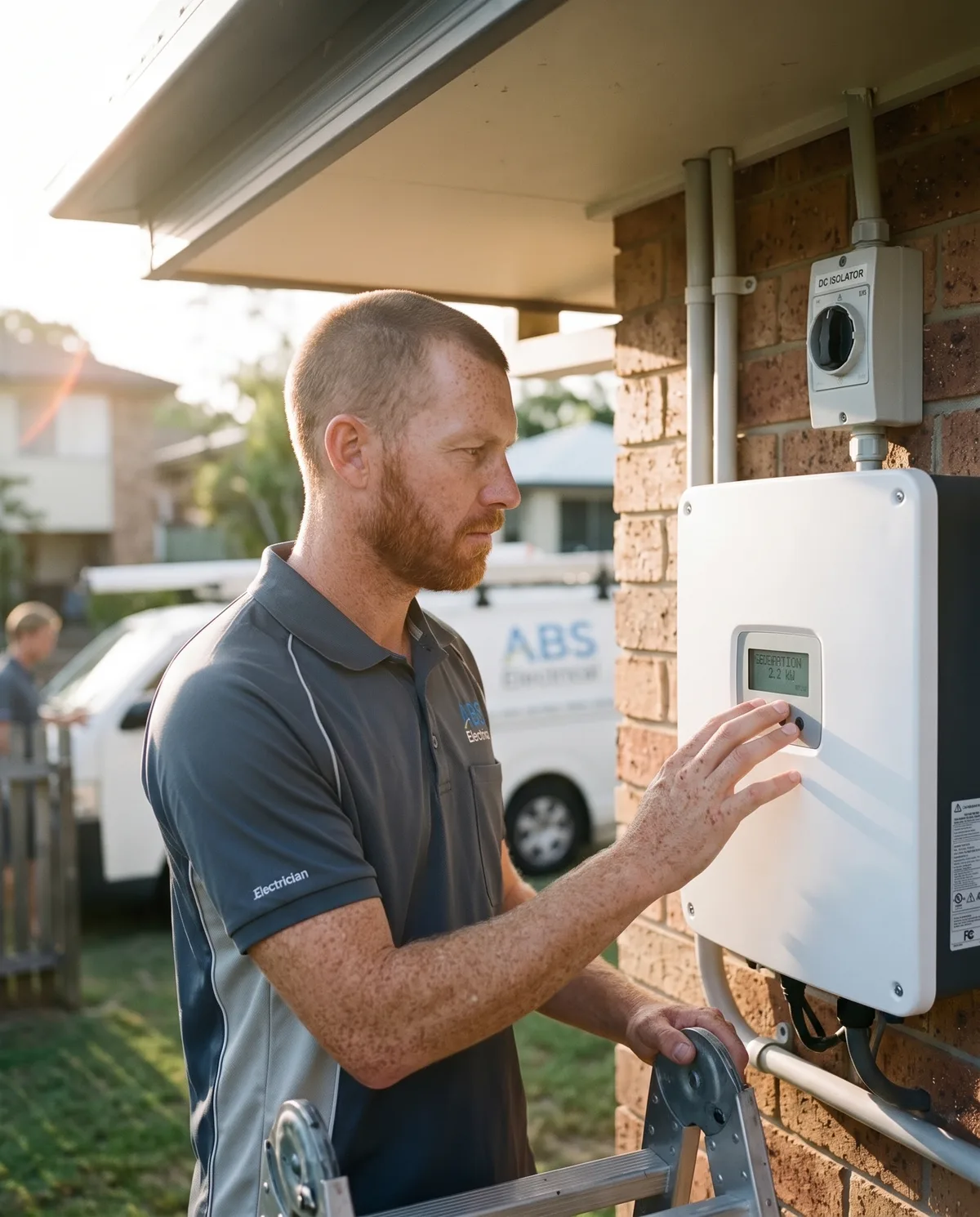

Commission and hand over
Tested, the meter reconfigured, the app set up, the certificate and compliance paperwork done.
From the roof

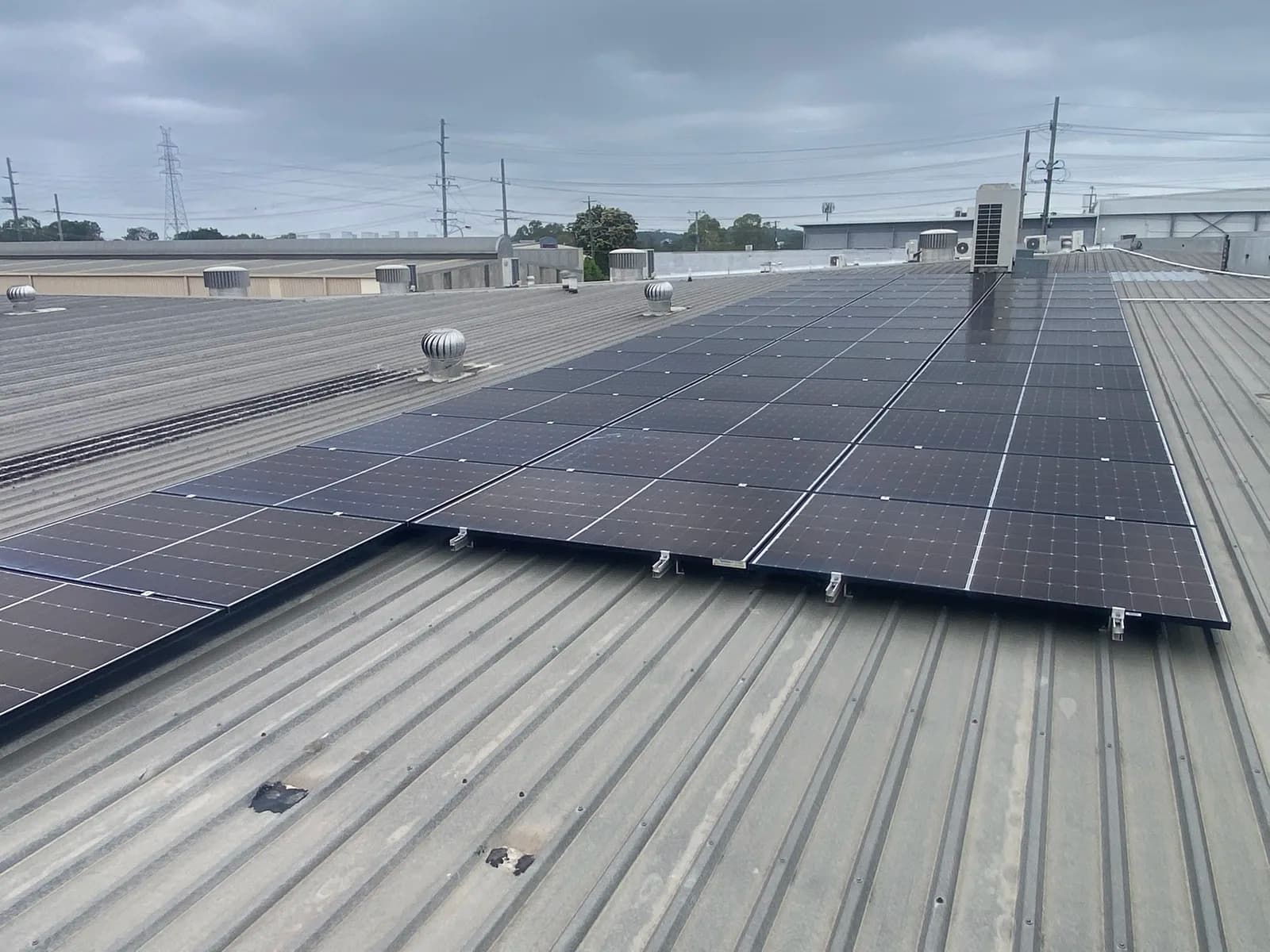

Recent installs, Brisbane east

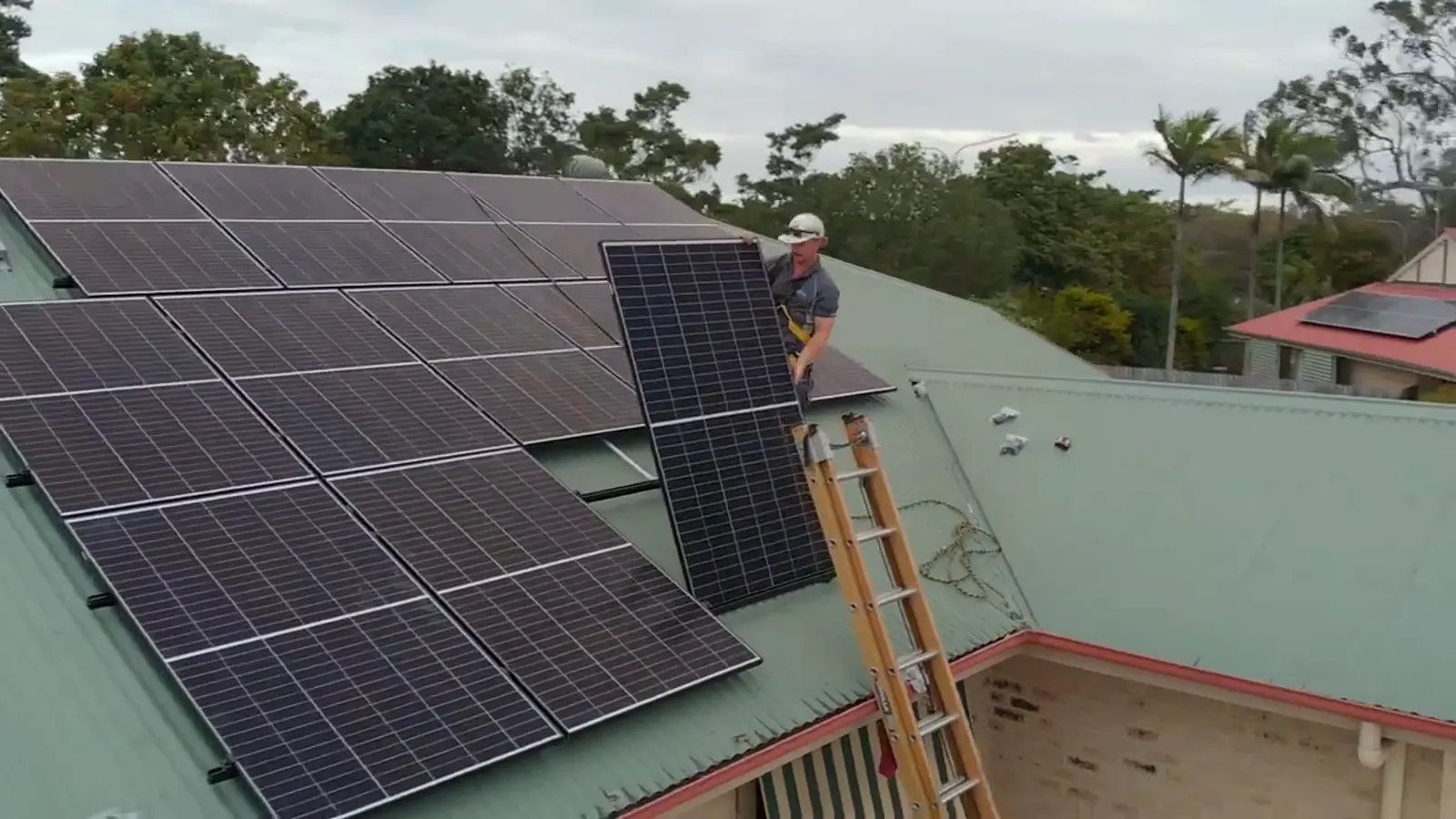

Real install · drone
Straight answer on cost
What moves the price of a system
From$5,700
for a 6.6 kW system, supplied and installed, GST included. Fixed written price before any work starts.
Brisbane quotes for a 6.6 kW system run from flyer deals to premium packages at more than twice the price, and the difference is in the parts and who fits them. Ours start from $5,700 for a 6.6 kW system, supplied and installed with GST included. Here is what moves it. One fixed written price with the rebate shown on it.
- Panel count and panel tier, and whether the inverter is hybrid-ready for a battery later
- Tin or tile, single or two storeys, and how many roof faces the array spans
- Switchboard and metering work, and single or three phase
- A dynamic connection device if the inverter needs one to export above 5 kW
Designed and installed by a licensed electrician
The whole system is installed, tested and certified under EC Licence 1502980, with the Energex paperwork done. Panels and inverter carry their own manufacturer warranties, and our workmanship is covered for 12 months on top.
EC Licence 1502980 · $20M public liability
Google reviews
Five stars from Brisbane locals
I would highly recommend ABS Electrical. Callum is very professional and knowledgeable and provided a excellent and prompt service at a competitive price installing solar system and electrical works.
Gregory Brazier
Google · Sept 2026
Punctual efficient and reasonably priced.
Therese Bretz
Google · Aug 2026
Cal installed a power point for a sauna. Was friendly, punctual and efficient. Will engage him for any future electrical work.
Zoe
Google · July 2026
Cal came out for an emergency loss of power and was prompt, fair pricing, found and solved the problem quickly. He also offered back up assistance if anything changed or lost power again he would be straight back. I would definitely recommend for all your electrical needs. Five star service all the way.
Maria Mazzeo
Google · June 2026
Very accommodating and friendly service.
Sandun
Google · Mar 2026
Cal did a great job putting up some new lights in my shop. Very professional, easy to work with, would definitely recommend.
Caleb Oliver
Google · Mar 2026
I can fully recommend Callum of ABS Electrical for his prompt and trustworthy service he provided today (Sunday). He went about his business in a totally professional manner. I would not hesitate to call him again if I had any electrical issues in the future.
David
Google · Dec 2025
Fast and high quality service at a good price. Highly recommend!
Sam Gooden
Google · Dec 2025
Cal did an excellent job upgrading the old switchboard in my house!
Ivan
Google · Oct 2025
Highly recommended!!! Cal did a fantastic job installing an air conditioner in my unit. Great work and professional service. I'll definitely be using their service again!
Masayo Kojima
Google · June 2025
Excellent service! Cal was punctual, knowledgeable, and got the job done quickly. Very professional and affordable. Highly recommend!
Emily Grace
Google · Mar 2025
A fantastic service! I could not be happier. Cal is friendly, efficient and a great electrician. Highly recommended!
Tracy Dudakov
Google · Mar 2025
I couldn't recommend ABS enough. The person they sent around was outstanding. High quality of work done fast and at very impressive prices. I will definitely be coming back to ABS for any future work required!
Jack McPherson
Google · Mar 2025
Very genuine workers, great service and they saved me money compared to the other quotes I received.
Sam Rowan
Google · Mar 2025
I highly recommend ABS! Cal did a fantastic job installing new ceiling fans, air conditioning, and power points. Work was completed efficiently, and he took the time to explain everything clearly. Cal offered great service, fair pricing, and a friendly attitude. I'll definitely be using ABS again!
Shiho Kagami
Google · Mar 2025
Very helpful. Sorted my electrical issue out quickly. Professional, polite and pleasant. Very happy with ABS' services. Highly recommend.
Amelia Robinson
Google · Mar 2025
Amazing experience with ABS! I had lights, fans and aircons installed. Very professional and knowledgeable. I highly recommend.
Kira
Google · Feb 2025
I've used ABS multiple times for plumbing, electrical, and general repairs. Every job was completed quickly, hassle-free, and at a better price than other quotes. The work has always been reliable with no issues afterward. Highly recommend and will continue using their services.
Nick
Google · Feb 2025
Highly recommend! I went through ABS as I needed a new AC unit installed. The guys at ABS looked after me and got it done quickly and professionally. Couldn't have asked for better service.
Liam Gould
Google · Feb 2025
Great work done by great people. Got a few fans installed, all done very professionally.
Gabe Armstrong
Google · Feb 2025
Common questions
Solar questions, answered straight
Send a recent bill and your address and we will draw the panel layout on your roof and price it before anyone comes out.
From $5,700, supplied and installed with GST included and the STC rebate shown on the quote. Panel brand, inverter, roof type and the number of roof faces move it from there. You get one fixed written price after we have seen the roof and the board.
Most Brisbane homes land between 13 and 24 panels. Thirteen to fifteen 440 W panels make a 6.6 kW system, which covers a household using up to about 25 kWh a day. Bigger bills, an EV, a pool or a battery push you towards 10 kW and 22 to 24 panels. Use the roof planner on this page, then we confirm against your bill and the roof.
For a smaller household with modest bills and no plans for an EV or a battery, yes. A 6.6 kW array on a 5 kW inverter fits the single-phase export rules, maximises the rebate and pays back fast. If you are heading towards an EV, electric hot water or a battery in the next few years, 8 to 10 kW is the better long-term buy, and the extra panels are cheap.
No. North gives the most energy over the year, but east and west lose only about 13 per cent each and spread generation across the day. West-facing panels make power in the late afternoon when the aircon is running and time-of-use tariffs are highest, which is often worth more than the north numbers suggest. South is the last resort and only on a low-pitch roof.
A basic single-phase connection can export 5 kW, and on streets already full of solar Energex can set it to zero. A dynamic connection lets the inverter talk to the network every five minutes and export up to 10 kW per phase most of the time, and it lets you fit up to 10 kVA of solar inverter on single phase. We lodge the application and fit a compliant inverter or gateway where one is needed.Source: Clean Energy Regulator, small-scale scheme, Energex dynamic connections
The federal Small-scale Renewable Energy Scheme gives the system STCs based on its size and location. We claim them and take the value off the quote as a line, so you see what you got. The scheme steps down each year until 2030, so a system fitted this year gets a bigger discount than the same one next year. It is separate from the battery discount.
If there is any chance of a battery in the next five years, yes. A hybrid inverter has the battery input built in, so adding a battery later is a half-day job with no second inverter to buy. It costs a bit more than a basic string inverter and saves a lot later.
Both work. Tin is faster: the rails clamp to the ribs without penetrating the sheet. Tile takes brackets under the tiles, hooked to the battens, and a few tiles usually crack and get replaced on the day. Tile installs take longer and cost a little more.
Shade on one panel drags down the whole string on a basic system. Where a roof face gets partial shade we fit optimisers on those panels, or lay the array on a different face. We check the shading from satellite and on the roof before quoting.
Not much. Brisbane retailers pay a few cents per kWh for exported solar, and some plans pay nothing. The value of solar is the power you use yourself at 30 cents or more. That is why we size for your daytime use, and why a battery or shifting the dishwasher and hot water to midday matters more than the tariff.
One day for most homes: rails and panels in the morning, inverter and isolators after lunch, power off for about an hour at the board. Two-storey homes, tile roofs and board upgrades can push it to two days. The Energex application goes in before we book, so there is no waiting on the day.
Brisbane rain keeps most arrays clean. Panels under trees or near the bay can use a rinse every couple of years. The inverter should be looked at every few years and it will tell you through the app if a string is under-performing. There is no subscription and nothing that needs an annual service contract.
Usually the panel and inverter brand, who is actually on the roof, and what happens after. The parts tier, the mounting system, cable in conduit, a dynamic connection and a hybrid-ready inverter are where the price difference sits. Ask any quote for the panel model, the inverter model and the name of the electrician doing the install.
Get a fixed price
A bill and your address
Your last power bill and the address. We draw the layout on satellite, size the inverter, work out the rebate, and come back with a fixed price.
- STC rebate shown as a line on the quote
- Energex connection lodged for you
- Certificate, compliance paperwork and the app set up
Get a Fast Quote
Expert licensed electricians. No hidden fees.
